This is Monday Morning Ramp-Up #3 — and this week’s theme is one of my favourites because it’s where “good enough” garages get found out: electrical diagnostics.
You’ve probably been there. A warning light pops up, the car runs rough sometimes, or the battery keeps going flat overnight. You plug in a cheap code reader (or a mate does), it spits out something vague like “sensor circuit”… and suddenly you’re staring down a list of parts you could throw at it. That’s the moment we go from guessing to testing.
Today’s episode is: THE GHOST IN THE MACHINE – TRACING ELECTRICAL GREMLINS WITH OSCILLOSCOPES.
And yeah, it can sound a bit dramatic — but intermittent electrical faults genuinely behave like ghosts. They come and go, they change with temperature, vibration, moisture, or load, and they’ll happily waste hours (and money) if the approach is “clear codes and see what happens”.
At Fastlane Autocare - Autocentres, we’re proud to offer main dealer quality diagnostics at independent prices, with an expert diagnostic team right here in St Helens. If you need us, the quickest route is our Contact Us page. If you want to read about the service first, head to Advanced Diagnostics.
📞 Call Us Now
Why a code reader isn’t enough (and what it’s actually doing)
A code reader is basically reading a symptom the car has noticed. That’s useful — but it’s not the same as finding the cause.
Modern vehicles decide to log a fault code when:
-
A sensor value is out of range,
-
A signal is missing,
-
A control module sees something “implausible” compared to other data,
-
Or a circuit test fails (open/short to ground/short to power).
But here’s the kicker: a code doesn’t always mean the part is bad. It might mean:
-
Wiring resistance changed under load,
-
A connector has corrosion and only fails when warm,
-
The ground path is marginal,
-
A module is losing voltage for milliseconds,
-
An aftermarket accessory is injecting electrical noise,
-
Or a sensor signal is “ugly” even though it’s not completely missing.
If the car flags “crankshaft position sensor signal”, a code reader can’t show you whether the signal has:
That’s where an oscilloscope comes in.
Oscilloscopes: how we “see” electricity in real time

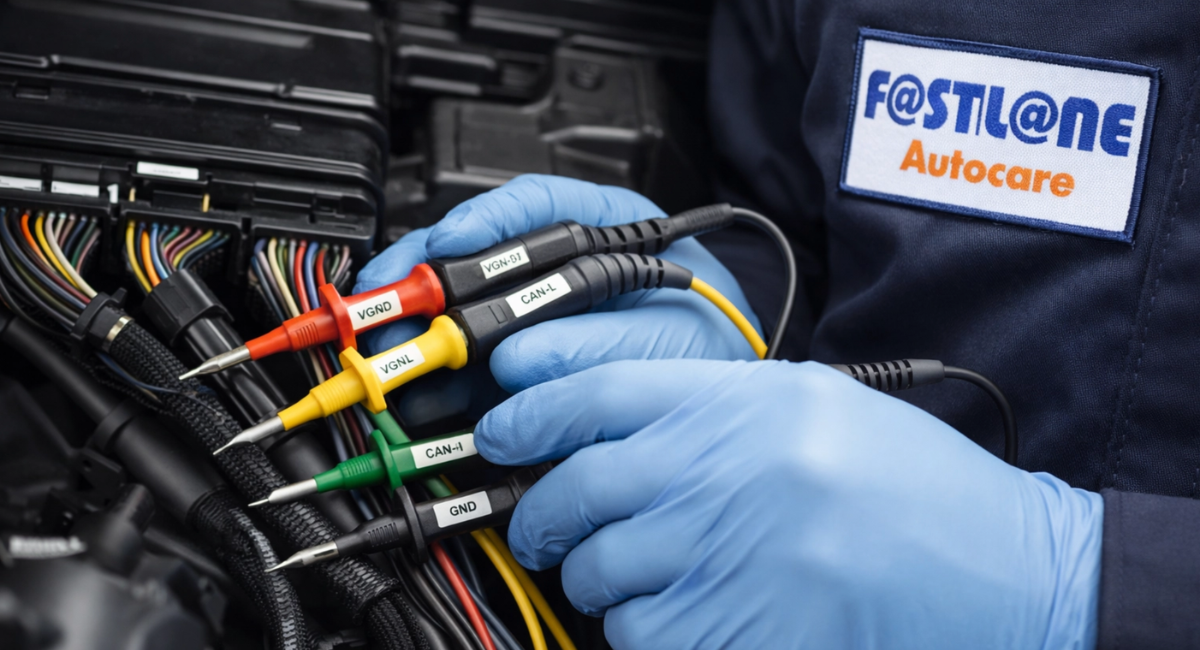

An oscilloscope (we often use systems like PicoScope) lets us visualise voltage over time. Instead of just a number on a multimeter, you get a waveform — the actual story of what the circuit is doing.
Think of it like this:
That’s the difference between “seems fine” and “there’s your fault”.
PWM, Duty Cycle, and why your multimeter lies (sometimes)
Loads of modern systems don’t run on “smooth DC” anymore. They’re controlled using Pulse Width Modulation (PWM) — basically switching power on and off very fast.
📞 Call Us Now
Common PWM-controlled components:
-
Cooling fans
-
Fuel pumps (on some setups)
-
Throttle bodies / actuators (depending on design)
-
EGR/boost control solenoids
-
EV and hybrid power electronics (big one)
Two key ideas:
A multimeter might average a PWM signal and show you something like “7.6V”, but the reality might be:
On a scope, you can measure duty cycle properly and see whether the signal is stable, noisy, or dropping out.
CKP signal integrity: when one tiny dropout kills an engine
One of the most common “ghost in the machine” issues is Crankshaft Position Sensor (CKP) signal integrity.
A CKP sensor is a timing reference. The ECU uses it to know:
If that CKP signal goes missing even briefly:
What we’re looking for on a scope:
-
Correct waveform type (Hall effect square wave vs inductive sine wave)
-
Stable amplitude
-
Consistent pattern
-
No missing teeth (where applicable)
-
No “hash” or interference
-
No dropouts under load / heat soak / vibration
A code reader can’t show signal quality. A scope can.
Parasitic drain: the silent battery killer
Another big one: parasitic drain. That’s when something keeps drawing power after the car is “off”.
Symptoms you might see:
We test parasitic draw the right way:
-
Confirm battery condition first (no point chasing a drain on a dead battery).
-
Measure current draw in series (ammeter / clamp setup).
-
Let the car go to sleep properly (modules can take 10–60 minutes depending on vehicle).
-
Identify what wakes it up or what never goes to sleep.
-
Use fuses, current ramps, and module wake-up data to isolate the circuit.
On some vehicles, a “normal” sleep draw might be around 20–50mA (varies a lot). If we see 250mA or 1.2A staying awake? That’s a proper problem, and it won’t always show up as a fault code.
Common culprits:
-
Boot latch/bonnet switch saying “open” when it isn’t
-
Infotainment modules not sleeping
-
Aftermarket trackers/dashcams wired incorrectly
-
Door modules waking intermittently
-
Water ingress into connectors causing leakage paths
The boring stuff that causes big faults: connectors, corrosion, and voltage drop
People love to blame ECUs. In reality, loads of faults are connectors and wiring.
📞 Call Us Now

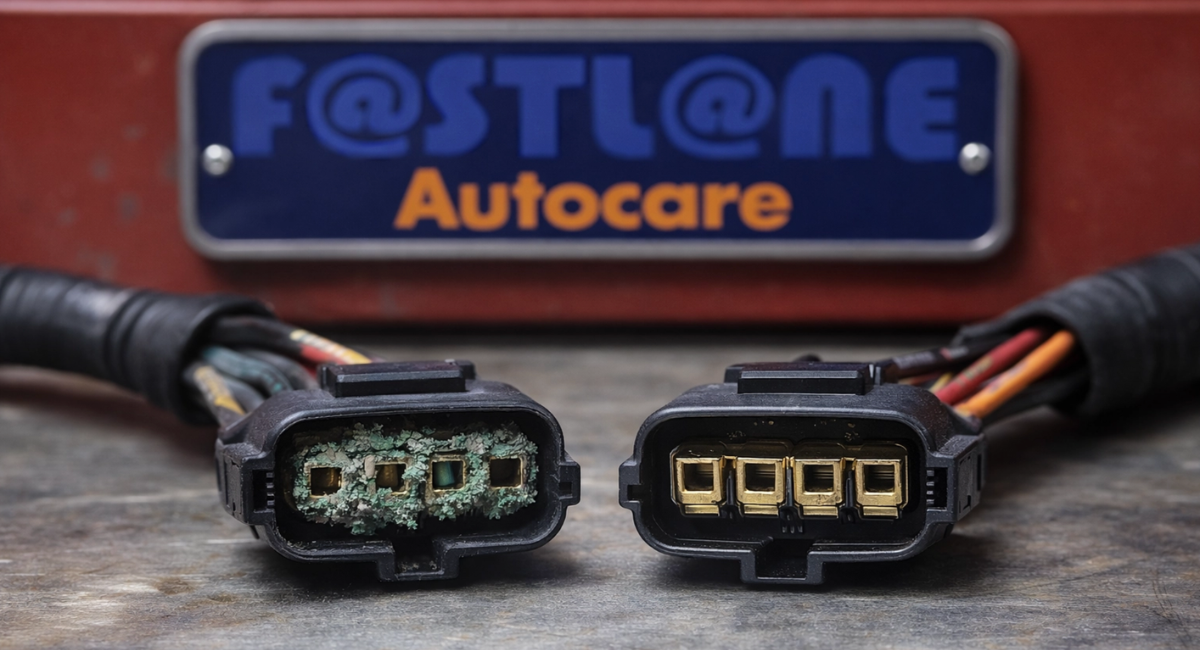

A connector can look “plugged in” and still be failing because:
-
Terminals have relaxed
-
Pins have fretting corrosion
-
Water ingress has started oxidation
-
A previous repair has damaged the crimp
-
The loom has rubbed through and only shorts when the engine moves
This is where we do the “old school” checks properly:
-
Voltage drop testing under load (because resistance shows itself when current flows)
-
Wiggle tests while scoping a signal
-
Thermal stress (warming/cooling suspected areas)
-
Checking ground integrity (bad grounds cause wild symptoms)
A corroded connector can create just enough resistance to distort a sensor signal or starve a module, and it can be intermittent enough to drive you mad.
Luxury cars vs everyday cars: same physics, same standards
Here’s the bit I really want to underline: electricity doesn’t care whether it’s in a Bentley or a Ford Fiesta.
Yes, the systems get more complex on premium vehicles:
But the diagnostic fundamentals are the same:
And that’s why our diagnostic approach works on everything — from daily drivers to prestige performance cars and EVs/hybrids.
If your vehicle needs specialist knowledge in that electrified space, have a look at our EV/Hybrid Specialist page.
“While it’s in…”: MOTs and spotting issues early
A lot of electrical issues get noticed during routine visits too — especially when customers come in for an MOT in St Helens and we spot:
Not every job is a deep-dive scope session — but when it needs to be, we’ve got the kit and the team to go beyond guesswork.
What to do if you’ve got an intermittent electrical fault
If you’re dealing with an electrical gremlin, here’s how to help us help you (and save yourself time/money):
-
Note when it happens: cold start, hot restart, rain, motorway, speed bumps, full lock, etc.
-
Record a quick video if you can (dash lights, gauge flicker, rough running)
-
Tell us about any recent work: batteries, alternators, stereos, trackers, jump starts
-
Don’t clear codes before coming in (freeze-frame data is gold)
Then book in with the diagnostic team via Contact Us. If you want the overview of what we do first, it’s all on Advanced Diagnostics.
